Merida

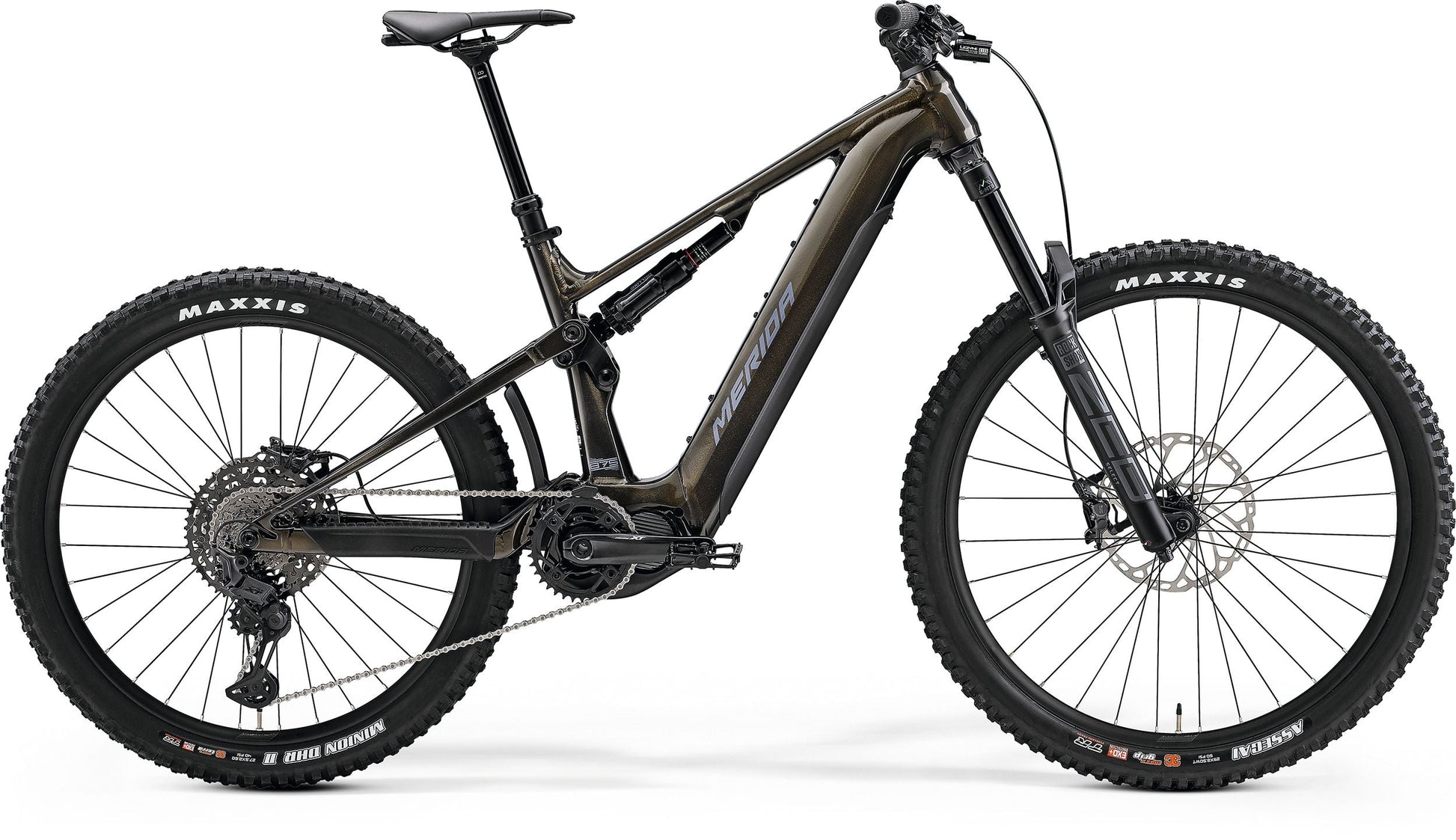

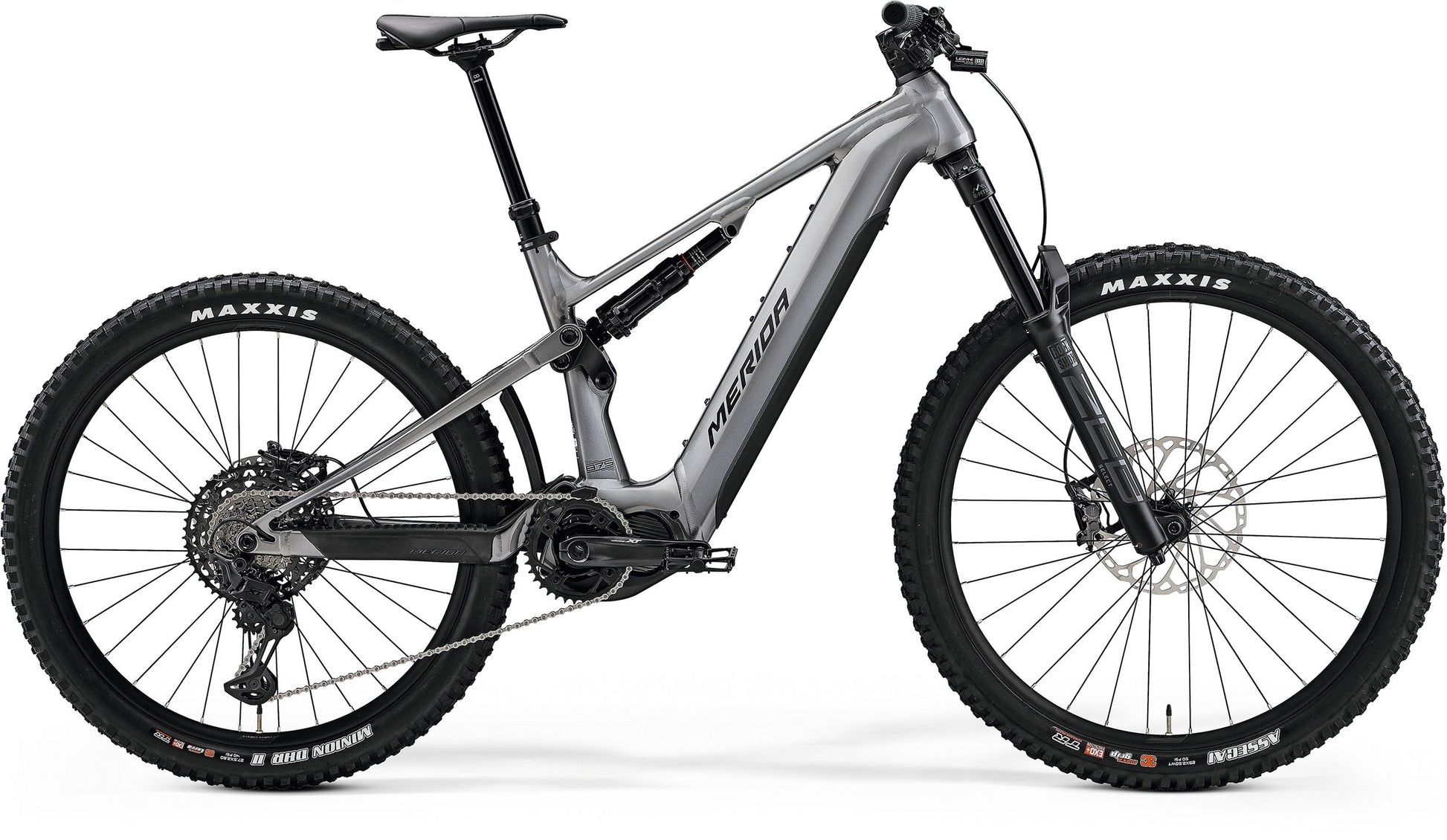

Merida eONE-SIXTY 875

Merida eONE-SIXTY 875

€5.799,00
€6.890,00 €5.799,00
Sale Sold out
Tax included. Shipping calculated at checkout.
Color
Cut

Climb, pedal, repeat. Our durable aluminum e-bike frame features a removable 750Wh battery and optional 360Wh extender for plenty of range, all paired with award-winning suspension and geometry, plus durable, high-performance kit by RockShox and Shimano.

Specifications

CHASSIS eONE-SIXTY LITE IV
  • material: aluminium
  • 174 mm suspension travel
  • 29x2.6" max. wheelsize
  • 148x12 mm standard axle
  • intube
COLOR GUNMETAL GRAY (BLACK)
FRAME SIZE XShort, Short, Mid, Long, XLong
FORK Rock Shox ZEB Select
  • Air
  • 170mm suspension travel
  • Tapered
  • 44mm offset fork
  • 29x2.8" max. wheelsize
SHOCK ABSORBER Rock Shox Super Deluxe Select
BRAKES Shimano XT
  • 4 piston
DISCS Shimano RT64 / Shimano RT-EM600
  • 220 mm
  • 203 mm
HEADSET Acros ICR MERIDA EXTERNAL neck w/ Blocklock
HANDLEBAR BEND MERIDA EXPERT eTR
  • 780mm width
  • 20 mm laughed
HANDLEBAR STEM MERIDA EXPERT eTR II
  • material: aluminium
  • 35mm diameter
  • 0° stem angle
  • Supernova mount
  • 40mm all sizes
KNOBS MERIDA EXPERT EC
EXCHANGE Shimano XT M8130 LinkGlide 11
COMMANDS Shimano SL -MT500-IL / Shimano XT M8130
CRANKSET Shimano FC-E8150
  • 165mm
SEAT POST MERIDA TEAM TR II
  • 34.9mm diameter
  • 0mm setback
  • all sizes 30-230 mm travel seatpost
MORS. SEAT POST MERIDA EXPERT
SADDLE PROXIM W400 STN
  • V-mount adapter
  • incl. MERIDA minitool
PEDALS VP VPE-527
CHAIN Shimano LG500
CRANKSET FSA 1x Steel Megatooth Chainring
  • 36 teeth
SPROCKET PACK Shimano LG700
  • 11-50 teeth
  • 11 speed
CIRCLES MERIDA EXPERT TR II
  • 110x15mm width front hub
  • 148x12 mm width rear hub
  • 28mm inner width
  • material: aluminium
  • Tubeless ready (tubeless tape and valves not included)
  • front 29"
  • rear 27.5"
HUBS Shimano XT
  • 110x15mm width front hub
  • 32 spoke holes
  • Centerlock
  • 148x12 mm width rear hub
  • 32 spoke holes
  • Centerlock
PINS MERIDA EXPERT TR
  • including removeable lever, 6/4 mm allen key
RAYS Black stainless
TIRES Maxxis Assegai / Maxxis DHR II
  • 29x2.5"
  • fold
  • TR EXO+ 3C MaxxGrip
  • 27.5x2.4"
  • fold
  • 3C DD MaxxTerra
FENDERS C093-02F + C093-02R
MOTOR Shimano EP801
  • 85Nm
DRUMS Trendpower Internal Battery 750Wh
DISPLAY Shimano SC-EM800
ALLOWED TOTAL WEIGHT 140kg
  • Total weight of bike, rider and luggage

*The manufacturer reserves the right to change information on the website without notice, including specifications, models, colors and materials.

*Images are for indicative purposes only and may not correspond to the product description.

Geometries

Image frame geometries

FRAME SIZE XSHORT SHORT MID LONG XLONG
TIRE SIZE 29/27.5" 29/27.5" 29/27.5" 29/27.5" 29/27.5"
ST SEAT POST MM. 400 410 425 445 465
TT TOP TUBE MM. 546 567 589 610 632
CS REAR CARRIAGE MM 446 446 446 446 446
HTA STEERING ANGLE DEGREES 64.4 64.4 64.4 64.4 64.4
STA DEGREES COLUMN TUBE ANGLE 78.5° 78.5° 78.4° 78.4° 78.3°
BD BOTTOM BRACKET MM. 9 9 9 9 9
HT HEIGHT OF HEAD TUBE MM. 100 105 110 115 120
FI FORK LENGTH MM. 581 581 581 581 581
R REACHS MM 419 439 459 479 499
S STACKS MM 624 628 633 637 642
WB DISTANCE MM 1199 1221 1244 1266 1288
SH STAND OVER HEIGHT MM 763 757 751 749 744
View full details
